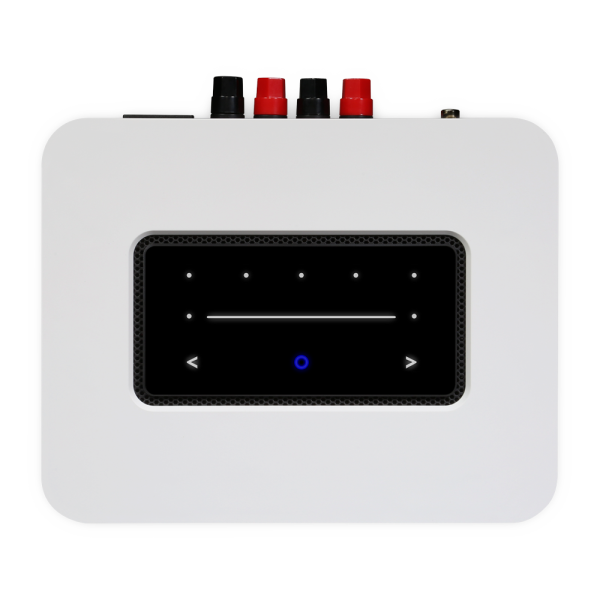

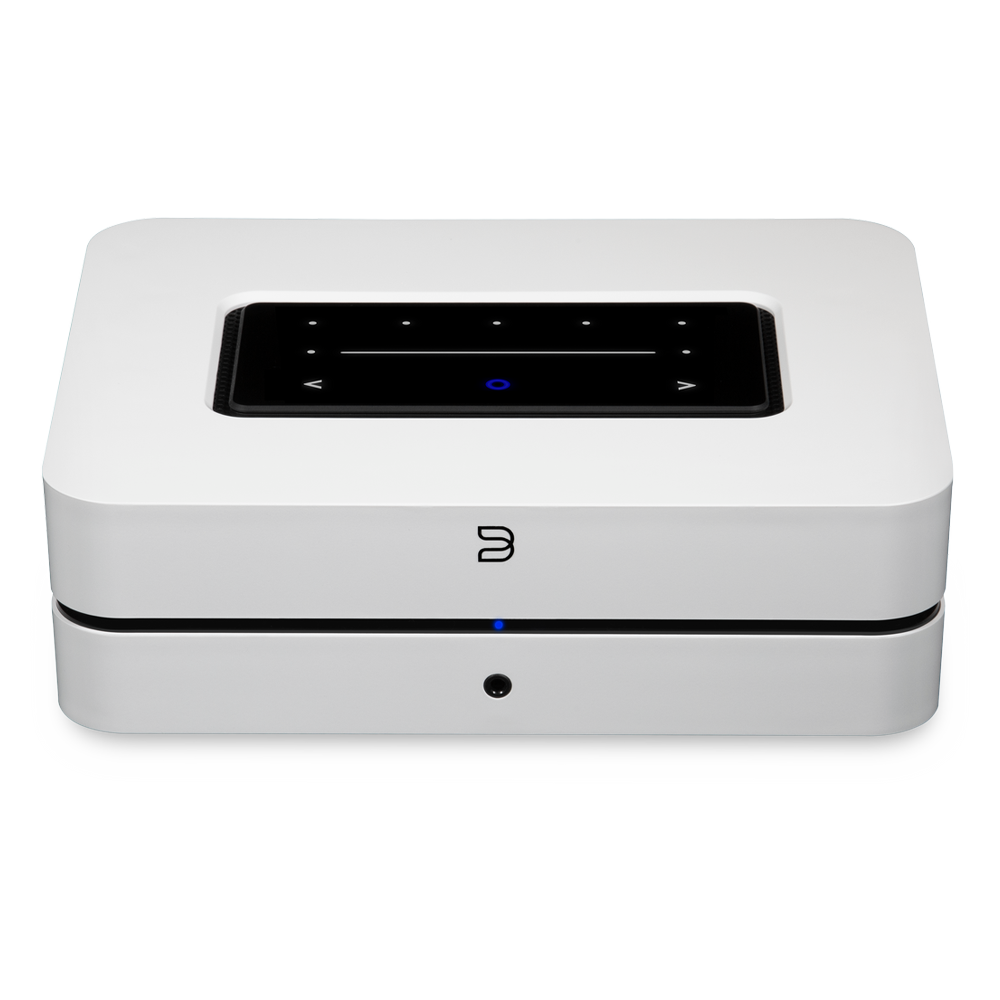

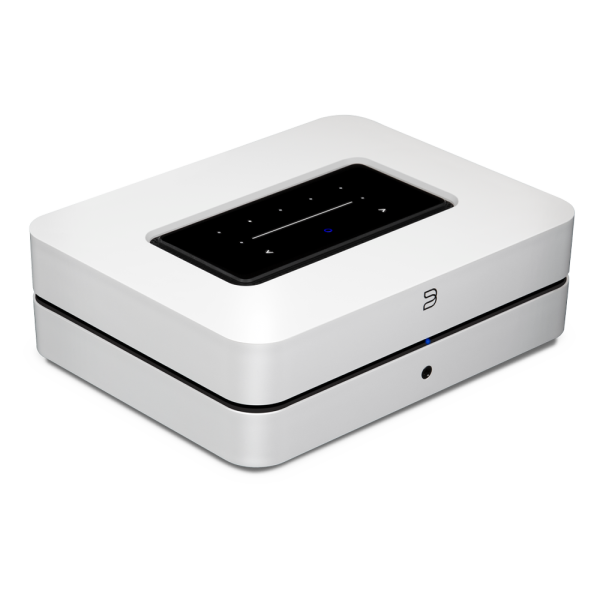

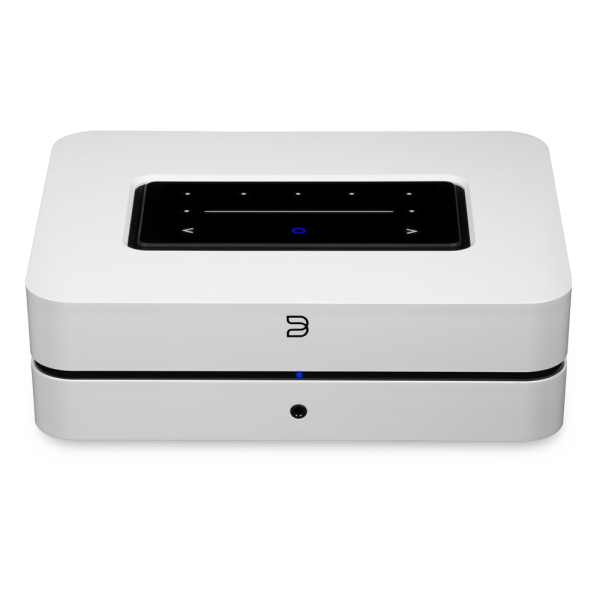

Bluesound POWERNODE

Finish
Black/White; Matte Satin Paint

Product Weight
1.78kg/3.9lbs

Included Accessories
120V AC Power Cord
230V AC Power Cord
Ethernet Cable
TOSLINK Optical to 3.5mm Mini Adaptor x 2
Safety/Warranty Guide
Quick Setup Guide

Power Consumption
12 Watts

Product Dimensions
220 x 70 x 190 mm
8.7 x 2.75 x 7.5 in

Shipping Dimensions
300 x 300 x 95 mm
11.8 x 11.8 x 3.74 in

Storage Environment
-10°C to 50°C, 20% to 80% relative humidity

Shipping Weight
3.15kg/6.94lbs

Operating Environment
'0°C to 40°C

Supported Audio File Formats:
MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

Supported Network File Sharing
Server Messsage Block (SMB) up to 200,000 files

Amplification
HybridDigital™

Supported Hi-Res Audio File Formats:
FLAC, MQA, WAV, AIFF, MPEG-4 SLS

Bit Depth:
16-24

Rated Power Output
80W x 2 (8 Ohms)

Supported Multi-Channel Audio Formats:
Dolby® Digital

Performance:
SNR -100dBA
THD+N, 0.008%

IHF Dynamic Power
220W (4 Ohms) / 130W (8 Ohms)

Native Sampling Rates:
up to 192 kHz

DAC:
32-Bit, 384kHz
Differential Output design

Processor:
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Operating System:
BluOS

3rd-Party Integrations:
AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready

App Controller Operating System:
iOS, Android, Windows Vista, 7, 8, 10, macOS 10-11

Album Art Supported:
JPG, PNG

Control System:
Control4, Crestron, URC, RTI, ELAN, Lutron

Network File Sharing:
SMB up to 200,000 track index

Voice Control:
Amazon Alexa Skills

Status Indicator
RGB LED x 2

Volume Control Buttons
Touch Slider LED

Preset Buttons
Touch LED x 5

Play/Pause Button
Touch LED

Previous/Next Track Buttons
Touch LED

Proximity Sensor
Yes

Network:
Wi-Fi 5 (802.11ac, 2.4/5GHz)
Ethernet RJ45, GigE 1000 Mbps

Bluetooth
Bluetooth with support for aptX HD
Two-Way (transmit & receive)

Bluetooth Quality
Bluetooth 5.0 aptX HD

Audio Input:
Mini TOSLINK/3.5mm Stereo combo x 2
HDMI eARC

Headphones
3.5mm Stereo Out
Wireless Bluetooth Out

USB IN
Type-A Port for external drive connection (Fat32 or NTFS formatted)

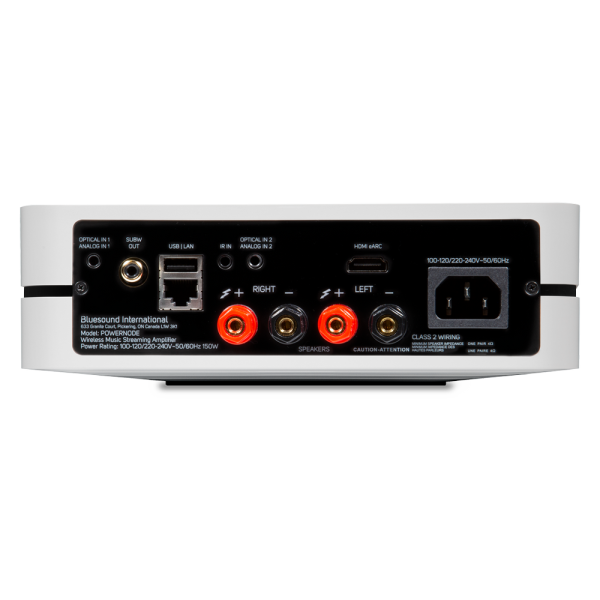

Audio Output:
5-Way Binding Post Speaker Terminals

Subwoofer
RCA

Network Pairing to PULSE SUB+

IR Remote
IR Sensor Built In - front panel with IR Remote Learning
Universal 3-pin AC cord input (100-240AC)

Bluetooth Connectivity
Two-Way (transmit & receive)
