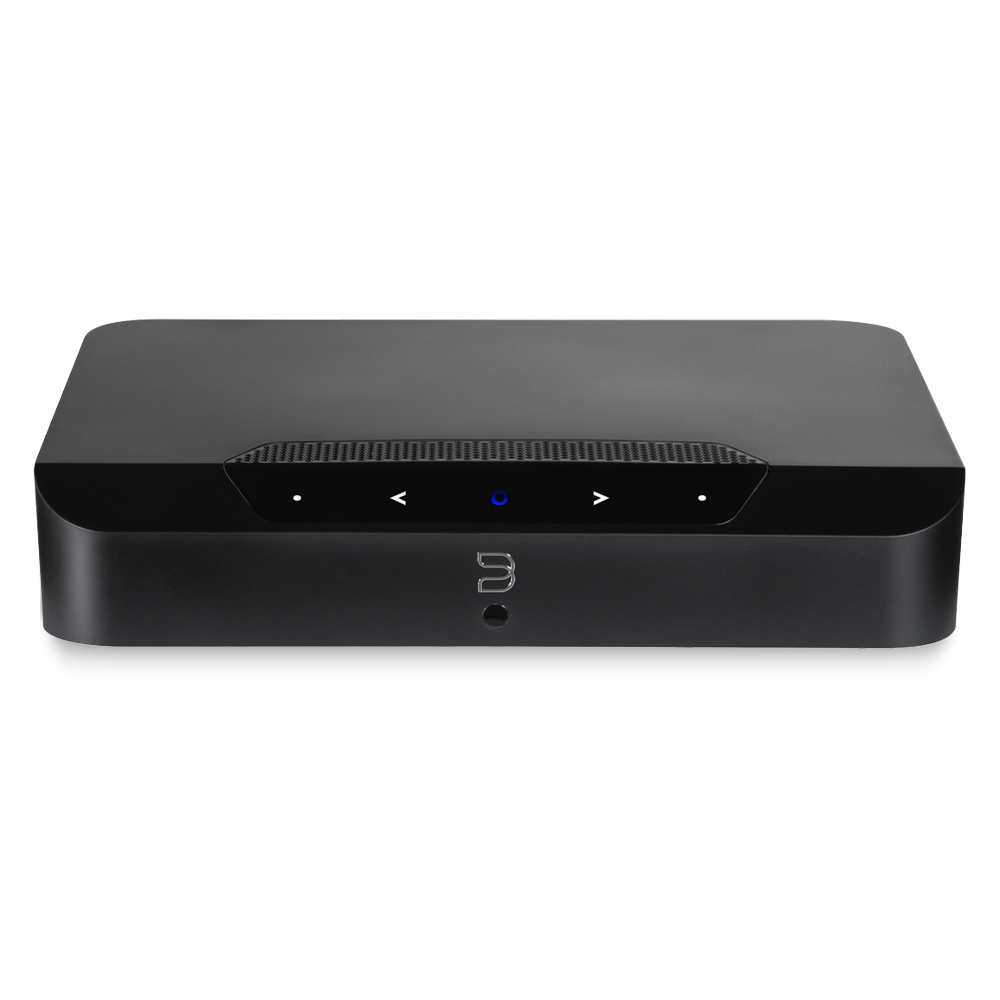

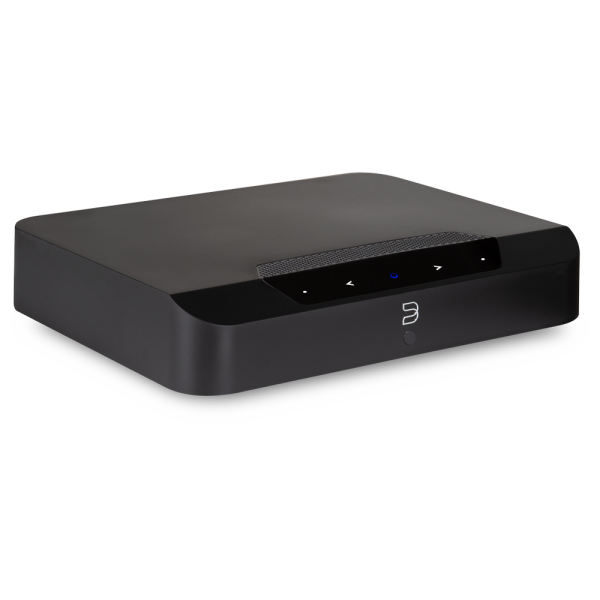

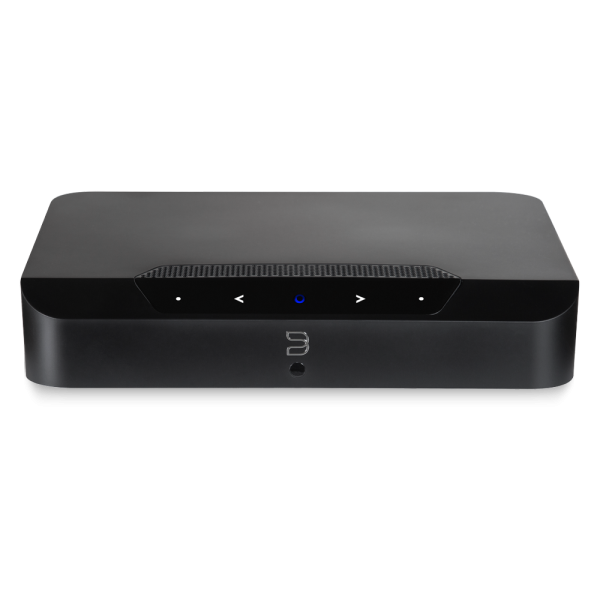

Bluesound POWERNODE EDGE

Finish
Black/White; Matte Satin Paint

Product Weight
1.37kg/3.02lbs

Included Accessories
120V AC Power Cord
230V AC Power Cord
Ethernet Cable
TOSLINK Optical to 3.5mm Mini Adapter
Metal Mounting Bracket
Metal Mounting Screw
Rubber Mount Attachment
Safety/Warranty Guide
Quick Setup Guide

Max Power Consumption
210W

Product Dimensions
219 x 44.5 x 193 mm
8.6 x 1.75 x 7.6 in

Shipping Dimensions
300 x 300 x 95 mm
11.8 x 11.8 x 3.74 in

Storage Environment
-10°C to 50°C, 20% to 80% relative humidity

Shipping Weight
2.62kg/5.78lbs

Operating Environment
'0°C to 40°C

Status Indicator
LED

Volume Control Buttons
Touch Slider LED

Preset Buttons
In-App

Play/Pause Button
Touch LED

Previous/Next Track Buttons
Touch LED

Power Supply
Universal bi-pin AC cord input (100-240AC)

IR Input
3.5mm Jack

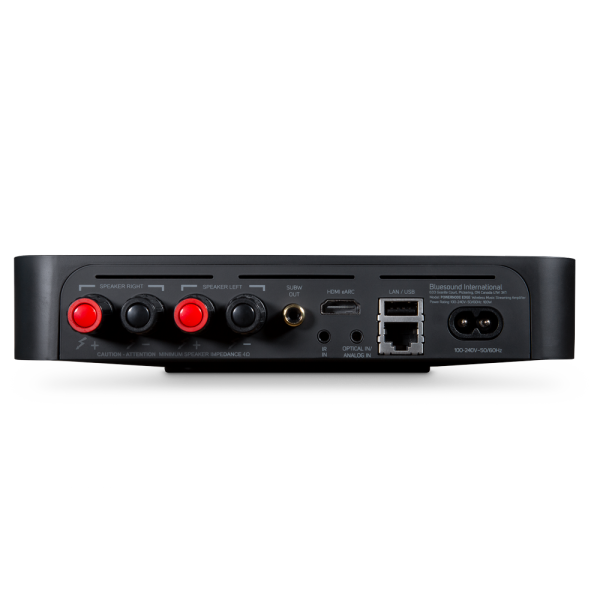

Speaker Terminals
5-Way Binding Post

Ethernet/LAN
Ethernet RJ45, Gigabit 1000 Mbps

Optical/Analog Input
Combo - Mini TOSLINK/Stereo 3.5mm

Headphone Output
Bluetooth only

Wi-Fi Built In
Wi-Fi 5 (802.11ac), dual-band

HDMI Input
HDMI eARC

IR Optical Built In
IR Sensor Built In - front panel with IR Remote Learning

Bluetooth Quality
Bluetooth 5.0 aptX HD

USB IN
Type A (Fat32 Formatted)

Headphone Output
Bluetooth only

Bluetooth Connectivity
Two-Way (transmit & receive)

Operating System
BluOS

Supported Network File Sharing:
Server Message Block (SMB) up to 200,000 files

3rd-Party Integrations:
AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready, Dirac Live Ready

App Controller Operating System:
iOS, Android, Windows, macOS

Album Art Supported:
JPG, PNG

Control System Integrations:
Control4, Crestron, URC, RTI, ELAN, Lutron

Processor
ARM® Cortex™ -A53, Quad-Core, 1.8GHz per core

Voice Control Integrations:
Amazon Alexa Skills

BluOS Home Theater
Yes - rear surround channels

Supported Audio File Formats:
MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS

Signal-to-Noise Ratio
-91dBA

Signal-to-Noise Ratio:
91dBA

Supported Hi-Res Audio File Formats
FLAC, MQA, WAV, AIFF, MPEG-4 SLS

Bit Depth:
16-24

Amplification
DirectDigital™

Supported Multi-Channel Audio Formats
Dolby® Digital

Audio Controls & EQ:
BluOS Controller App

Rated Power Output
40W x 2 (8 Ohms)

Native Sampling Rates
up to 192 kHz

Minimum Impedance
4 Ohms

IHF Dynamic Power
80W (4 Ohms) / 50W (8 Ohms)
