Description
Main Features
01.
Power to perform
Each critical component of the server receives its own dedicated power supply from one of the 8 independent power rails, further preventing component cross-contamination. The STATEMENT uses a dedicated power supply for each of the Ethernet and USB high-precision oven-controlled crystal oscillator (OCXO) clocks, ensuring these clocks work at their best.
02.
Optimised chassis

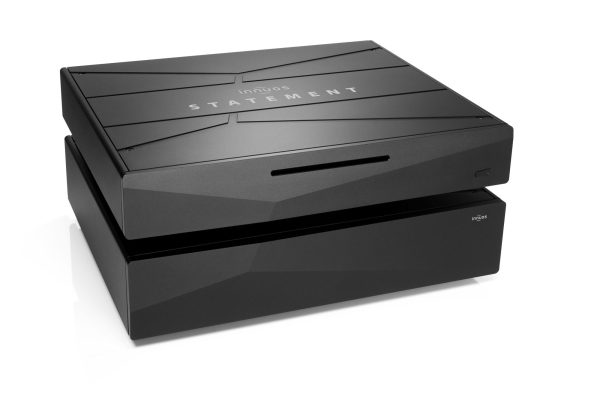

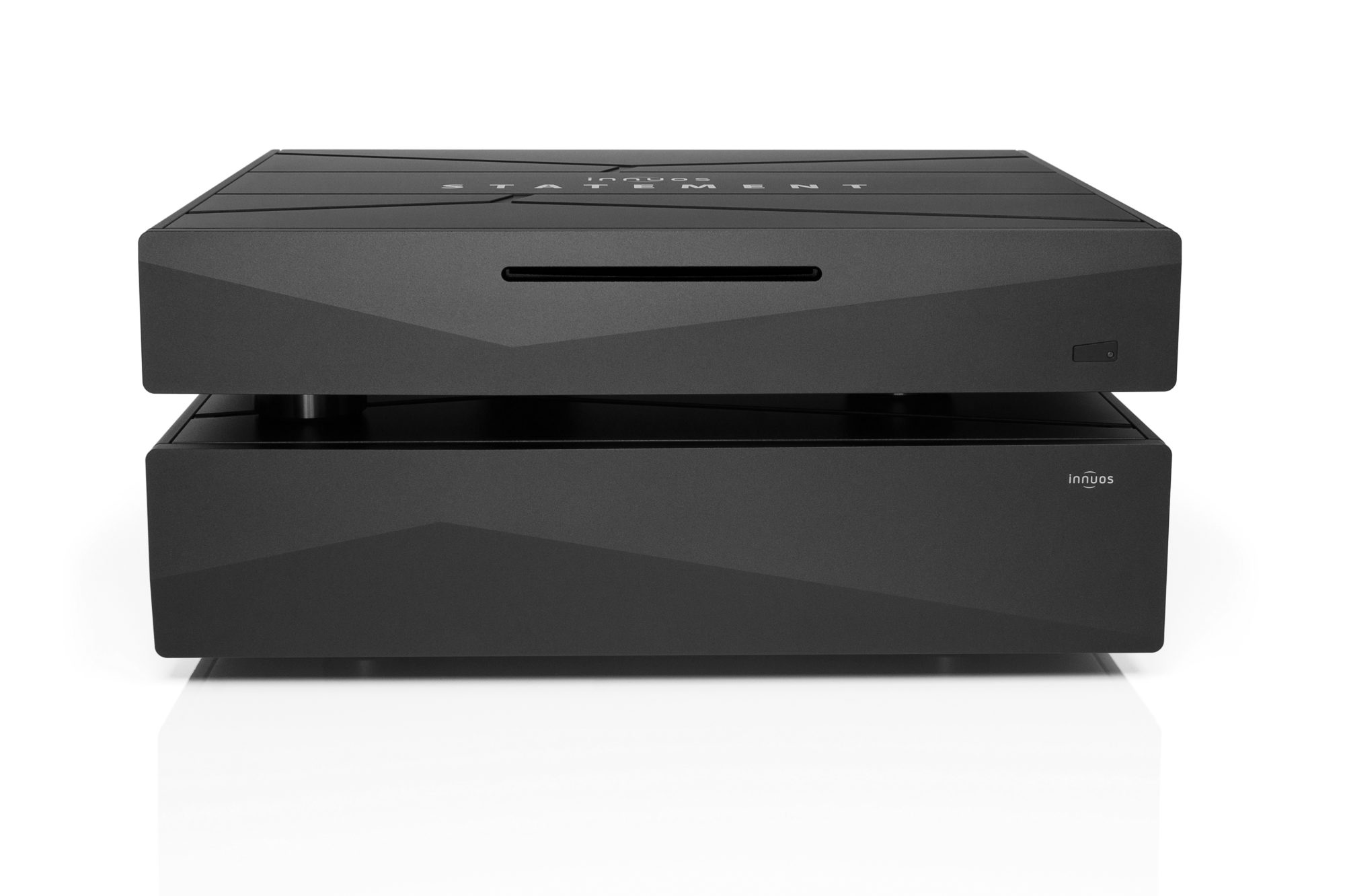

Housed in a casing of 10mm-thick CNC-machined aluminum, the STATEMENT is not just a pretty face. The thick metal enclosure helps to isolate external EMI, and its weight helps dampen harmful vibration into the system. By using a double-enclosure design, it also helps to contain the vibration effects of the massive 540VA toroidal transformer at its heart.
03.
Precision-time signal
STATEMENT’s custom-designed components include USB and Ethernet re-clocking for higher precision and lower phase noise. At the heart of the design are 3 principles: The use of very high-precision 3 parts per billion (3ppb) OCXO clocks for timing the signals, extreme care in powering important components preventing cross-contamination, and extremely short paths between components.
04.
Reaching higher

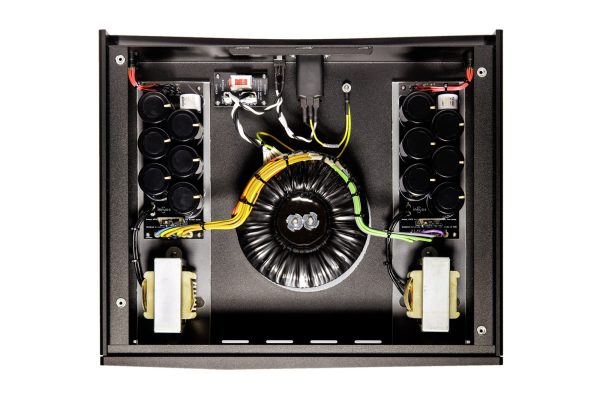

The Next-Gen power section uses two custom-designed ARC6 AC/DC modules – each containing a high-precision active rectifier board, a massive 10mH DC choke and substantial capacitance provided by six Mundorf caps.
05.
Smoother performance
The ARC6 modules are mounted on the new Adaptive Vibration Control (AVC) platform – a combination of Panzerholz wood with a specific density gel layer, which is highly effective at dampening high-frequency vibration coming from the chassis.

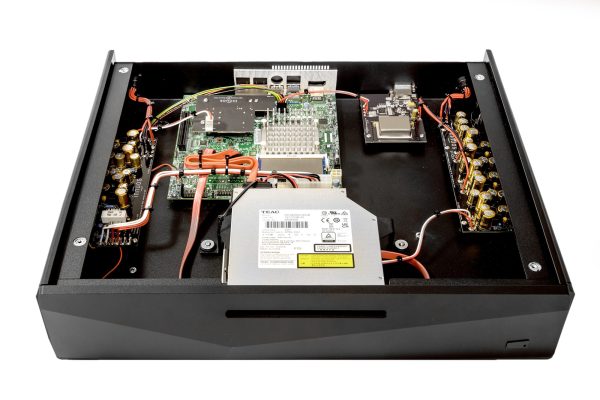

In the server section, the regulator modules include a dedicated processor booster module, providing up to 15A of current to the processor for faster transients. All rails are further smoothed by new Audio Note KAISEI capacitors benefitting all the main components: motherboard, USB reclocker, Ethernet clock module and SSD.
